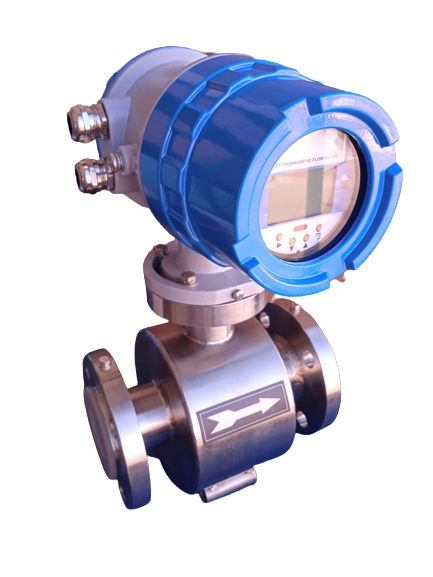

Electromagnetic flow meter – stainless steel – 4″ (DN100) – FE-100-C-I-4-T-0-4-E-I4-A15

DESCRIPTION
The electromagnetic flow meter is a volumetric flow meter with no moving parts, ideal for wastewater applications or any conductive or water-based liquid. It is also suitable for applications that require low pressure drop and minimal maintenance, ensuring stable and accurate flow measurement.

TECHNICAL SPECIFICATIONS
Type: Electromagnetic flow meter
Diameter: 4″ (DN100)
Electrode material: Stainless steel 316L
Output signal: 4–20 mA / Standard pulse
Lining material: PTFE (Teflon)
Power supply: 110–240 VAC
Grounding connection: Standard grounding electrode
Body material: Stainless steel 304
Connection type: ANSI 150
Accuracy: 0.5% FS
Model: FE-100-C-I-4-T-0-4-E-I4-A15
