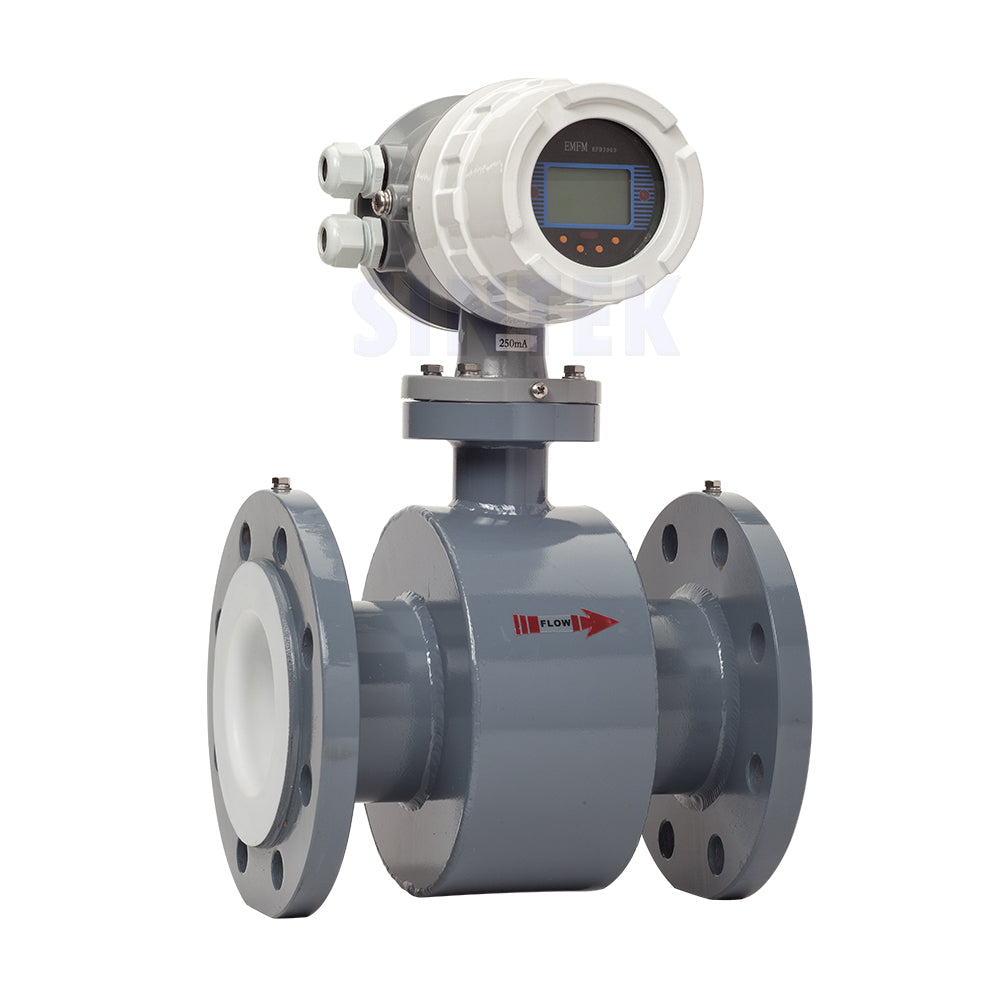

Electromagnetic flow meter – carbon steel – DN50 (2″) – FE-50-C-I-4-T-0-4-E-AC-A15

DESCRIPTION
The electromagnetic flow meter is one of the most flexible and universally applicable flow measurement systems available. It is a volumetric flow meter with no moving parts, making it ideal for wastewater applications or any dirty conductive or water-based liquids. The magnetic flow meter is also suitable for applications requiring low pressure drop and minimal maintenance.

APPLICATIONS
Wastewater: transport networks, wastewater treatment plants, sludge
Chemical industry: acids, alkalis, dosing applications, abrasive or corrosive media
Metal and mining: media with high solid content such as ore or excavator sludge, water measurement, leak detection
Pulp and paper industry: pulp, slurries, caustic media, liquors, additives, bleaches, dyes
Food and beverage industry: mixing, dosing, and filling of beverages under hygienic conditions in filling system applications

TECHNICAL SPECIFICATIONS
Flow meter type: Electromagnetic flow meter
Minimum operating conductivity: > 20 μS/cm
Size: DN50 (2″)
Structure: Compact with local display
Electrode material: Stainless steel 316L
Output signal: 4–20 mA / Standard pulse output
Lining material: PTFE (Teflon)
Power supply: 110 to 240 VAC
Grounding connection: Grounding electrode
Body material: Carbon steel
Connection type: ANSI 150 (Flanged)
Model: FE-50-C-I-4-T-0-4-E-AC-A15
